Motor & Tires
|
New products,
promotion & place order at:
www.bizchip-components.com
1. Narrow
Tire Set (58mm Dia), 70145, RM40.00
2. Twin
Motor Gearbox,
70097, RM80.00
3. Double Gearbox,
70168, RM60.00
4. SV01 RC Servo Motor,
RM60.00
5. SV003 RC Servo Motor,
RM90.00
6. SV04 Mini RC Servo
Motor, RM43.00
7. Ball Caster, 70144,
RM35.00
8. Multi Terrain Car Base
, RM220.00
9. Regulator
Pager Motor, RM65.00
10. Tiny Pager Motor,
RM65.00
|
|
|
Plastic gear, 4.8V-6V, maximum torque:
4Kgcm, 180 degree rotational, suitable for robotic arm, biped robot, size(mm):
41 X 20 X 37
Datasheet [TOP] |
|

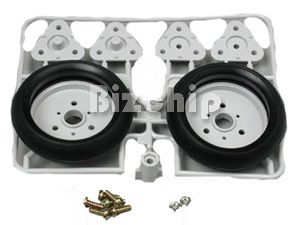

Tamiya. Use the pair of tires in this set
for small and medium-sized robots that must make precise movements. With a
58mm diameter and solid, rounded, 15mm treads, these wheels will let your
robot turn with little friction, even on rough surfaces like carpet. This
narrow tire set requires assembly. Assembly guide is included.
Datasheet
[TOP] |
|

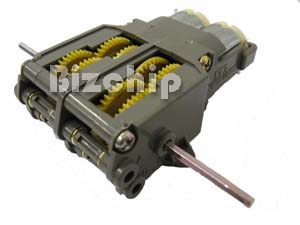

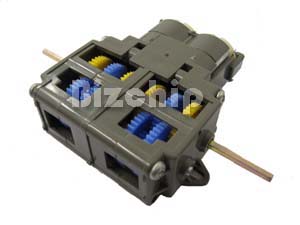

Tamiya. The twin motor gearbox uses a two
motor system to provide power and speed to turn the hex shaft. The gear box
is made from high quality plastic. You can set different gear ratio for
either side. It provides full fwd-rev-left-right action! Two FA-130 metal
brush motors are included. This gear motor requires assembly. Assembly guide
is included.
Datasheet [TOP] |
| Tamiya. This double gearbox has 4 choices
of gear ratios. It provides full fwd-rev-left-right action. You can set
different gear ratios for either side. Two FA-130 metal brush motors are
included. This gear motor requires assembly. Assembly guide is included.
Datasheet
[TOP] |

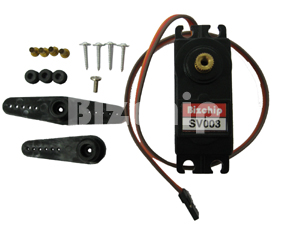

| Metal gear, 4.8V-6V, maximum torque:
13Kgcm, 180 degree rotational, suitable for robotic arm, biped robot,
size(mm): 41 X 20 X 37 Datasheet [TOP] |

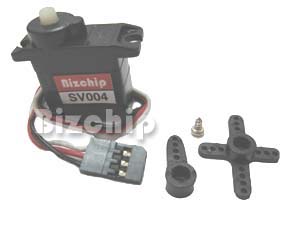

| Plastic gear, 4.8V-6V, maximum torque:
1.6Kgcm, 180 degree rotational, suitable for robotic arm, biped robot and
robotic finger, size(mm): 23 X 12 X 21 Datasheet [TOP] |

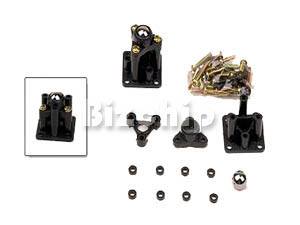

Tamiya. The ball casters make a good
third wheel for 3 wheeled robots, or you can use 2 for more balance. The
ball caster can be assembled in two different ways, so that it has a total
height of either 25mm or 35mm. With the Ball Caster, your project can pivot
and move in almost any direction. There are two ball casters included, and
height can be adjusted for various applications and projects. This ball
caster requires assembly. Assembly guide is included.
Datasheet
[TOP]

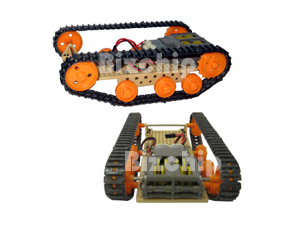

| Multi terrain car base is suitable for sand, slippery, obstacle (around 15mm height) surface.
This car base size is W11xL17xH5cm, it can carry around 400g items.
The whole body is made of plastic but the track wheels are rubber. The car base comes with a twin gearbox motor (use 6V/4AA battery),
thus it can move forward, reverse, left, right and stop (with/without speed control). This is a self assembly product. User manual provided.
|

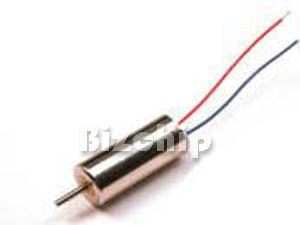

The regular pager motor is 7.05mm
(0.277") diameter, 16.54mm (0.651") body length, and 21.7mm (0.854") overall
length, with the shaft diameter of 1.01mm(0.039"). With 1.5V gives 17.5mA
free draw current (120mA stall) at 9700RPM. 3V gives 22mA free (260mA stall)
at 18,420RPM. 5V operation give 32.1mA free (420 stall) at 31900RPM.
Datasheet
[TOP]

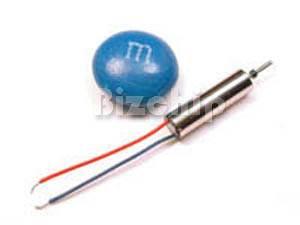

| This tiny pager motor is just 4mm
(0.158") diameter and an overall length of 16.4mm (0.65") with an output
shaft diameter of 0.66mm (0.026"). Performance at 1.5V is 12.4mA unloaded
(36.8 mA stall) at 10,100 RPM. At 3V, current is 17.6mA free (73mA stall) at
20300RPM! And just for fun, 5V give 20.3mA free (117mA stall) at 32,500RPM.
Datasheet
[TOP] |
|
|
|
|
|
;)
;)
;)
;)
;)
;)
;)
;)
;)
;)
